Using supervised sample-level methods

Using supervised sample-level methods#

In this tutorial, we will demostrate how to run supervised sample-level methods for single-cell data with patpy.

Import packages#

import pandas as pd
import scanpy as sc
import patpy
import matplotlib.pyplot as plt
from sklearn.metrics import classification_report

patpy.__version__

'0.13.0'

Read the data#

Here, we use COMBAT dataset. This dataset contains 783k cells from 140 COVID-19 patients and healthy donors.

ADATA_PATH = "/home/icb/vladimir.shitov/projects/vladimir.shitov/2023_05_patient_representation_benchmark/reproducibility/pat_rep_benchmark/data/combat/combat_processed.h5ad"

adata = sc.read_h5ad(ADATA_PATH)
adata

AnnData object with n_obs × n_vars = 783677 × 3000
    obs: 'Annotation_cluster_id', 'Annotation_cluster_name', 'Annotation_minor_subset', 'Annotation_major_subset', 'Annotation_cell_type', 'GEX_region', 'QC_ngenes', 'QC_total_UMI', 'QC_pct_mitochondrial', 'QC_scrub_doublet_scores', 'TCR_chain_composition', 'TCR_clone_ID', 'TCR_clone_count', 'TCR_clone_proportion', 'TCR_contains_unproductive', 'TCR_doublet', 'TCR_chain_TRA', 'TCR_v_gene_TRA', 'TCR_d_gene_TRA', 'TCR_j_gene_TRA', 'TCR_c_gene_TRA', 'TCR_productive_TRA', 'TCR_cdr3_TRA', 'TCR_umis_TRA', 'TCR_chain_TRA2', 'TCR_v_gene_TRA2', 'TCR_d_gene_TRA2', 'TCR_j_gene_TRA2', 'TCR_c_gene_TRA2', 'TCR_productive_TRA2', 'TCR_cdr3_TRA2', 'TCR_umis_TRA2', 'TCR_chain_TRB', 'TCR_v_gene_TRB', 'TCR_d_gene_TRB', 'TCR_j_gene_TRB', 'TCR_c_gene_TRB', 'TCR_productive_TRB', 'TCR_chain_TRB2', 'TCR_v_gene_TRB2', 'TCR_d_gene_TRB2', 'TCR_j_gene_TRB2', 'TCR_c_gene_TRB2', 'TCR_productive_TRB2', 'TCR_cdr3_TRB2', 'TCR_umis_TRB2', 'BCR_umis_HC', 'BCR_contig_qc_HC', 'BCR_functionality_HC', 'BCR_v_call_HC', 'BCR_v_score_HC', 'BCR_j_call_HC', 'BCR_j_score_HC', 'BCR_junction_aa_HC', 'BCR_total_mut_HC', 'BCR_s_mut_HC', 'BCR_r_mut_HC', 'BCR_c_gene_HC', 'BCR_clone_per_replicate_HC', 'BCR_clone_global_HC', 'BCR_clonal_abundance_HC', 'BCR_locus_LC', 'BCR_umis_LC', 'BCR_contig_qc_LC', 'BCR_functionality_LC', 'BCR_v_call_LC', 'BCR_v_score_LC', 'BCR_j_call_LC', 'BCR_j_score_LC', 'BCR_junction_aa_LC', 'BCR_total_mut_LC', 'BCR_s_mut_LC', 'BCR_r_mut_LC', 'BCR_c_gene_LC', 'COMBAT_ID', 'scRNASeq_sample_ID', 'COMBAT_participant_timepoint_ID', 'Source', 'Age', 'Sex', 'Race', 'BMI', 'Hospitalstay', 'Death28', 'Institute', 'PreExistingHeartDisease', 'PreExistingLungDisease', 'PreExistingKidneyDisease', 'PreExistingDiabetes', 'PreExistingHypertension', 'PreExistingImmunocompromised', 'Smoking', 'Symptomatic', 'Requiredvasoactive', 'Respiratorysupport', 'SARSCoV2PCR', 'Outcome', 'TimeSinceOnset', 'Ethnicity', 'Tissue', 'DiseaseClassification', 'Pool_ID', 'Channel_ID', 'ifn_1_score', '_scvi_batch', '_scvi_labels', 'n_genes_by_counts', 'log1p_n_genes_by_counts', 'total_counts', 'log1p_total_counts', 'pct_counts_in_top_50_genes', 'pct_counts_in_top_100_genes', 'pct_counts_in_top_200_genes', 'pct_counts_in_top_500_genes', 'total_counts_mt', 'log1p_total_counts_mt', 'pct_counts_mt', 'total_counts_ribo', 'log1p_total_counts_ribo', 'pct_counts_ribo', 'vertex', 'eigenvector_centrality'
    var: 'gene_ids', 'feature_types', 'highly_variable', 'highly_variable_rank', 'means', 'variances', 'variances_norm', 'highly_variable_nbatches', 'mt', 'ribo', 'n_cells_by_counts', 'mean_counts', 'log1p_mean_counts', 'pct_dropout_by_counts', 'total_counts', 'log1p_total_counts'
    uns: 'Institute', 'ObjectCreateDate', 'Source_colors', 'Technology', 'X_gloscope_cuml_distances', 'X_gloscope_pynndescent_distances', 'X_scpoli', '_scvi_manager_uuid', '_scvi_uuid', 'genome_annotation_version', 'gloscope_representation', 'gloscope_scpoli_distances', 'hvg', 'log1p', 'neighbors', 'pca', 'scpoli_distances', 'scpoli_parameters', 'scpoli_samples'
    obsm: 'X_pca', 'X_scANVI_batch', 'X_scANVI_sample', 'X_scVI_batch', 'X_scVI_sample', 'X_scpoli', 'X_umap', 'X_umap_source'
    varm: 'PCs'
    layers: 'X_raw_counts'
    obsp: 'connectivities', 'distances'

Set columns containing sample IDs, cell types and metadata#

sample_id_col = "scRNASeq_sample_ID"
cell_type_key = "cell_type"
samples_metadata_cols = ["Source", "Outcome", "Death28", "Institute", "Pool_ID", "binary_condition"]

Currently, there is no such columns as “cell_type” in the data. But cell types are stored in the Annotation_major_subset column. Let’s rename it to cell_type for better readability.

adata.obs.rename(columns={"Annotation_major_subset": cell_type_key}, inplace=True)

For this tutorial, we will create a binaru condition column, containing information whether a donor is healthy or comes from COVID-19 group

adata = adata[~adata.obs["Source"].isin(["Sepsis", "Flu"])]
adata.obs["binary_condition"] = adata.obs["Source"].str.contains("COVID").astype(int) # 1 for COVID-19, 0 for healthy
adata.obs["binary_condition"].value_counts()

binary_condition
1    524530
0     87204
Name: count, dtype: int64

Store metadata and calculate QC metrics#

metadata = adata.obs[samples_metadata_cols + [sample_id_col]].drop_duplicates()
metadata.set_index(sample_id_col, inplace=True)
metadata

	Source	Outcome	Death28	Institute	Pool_ID	binary_condition
scRNASeq_sample_ID
S00109-Ja001E-PBCa	COVID_SEV	2.0	0	Oxford	gPlexA	1
S00112-Ja003E-PBCa	COVID_MILD	5.0	0	Oxford	gPlexA	1
S00005-Ja005E-PBCa	COVID_CRIT	2.0	0	Oxford	gPlexA	1
S00061-Ja003E-PBCa	COVID_SEV	4.0	0	Oxford	gPlexA	1
S00056-Ja003E-PBCa	COVID_SEV	3.0	0	Oxford	gPlexA	1
...	...	...	...	...	...	...
S00076-Ja001E-PBCa	COVID_MILD	5.0	0	Oxford	gPlexK	1
S00072-Ja001E-PBCa	COVID_SEV	2.0	0	Oxford	gPlexK	1
S00065-Ja003E-PBCa	COVID_CRIT	2.0	0	Oxford	gPlexK	1
S00048-Ja003E-PBCa	COVID_SEV	4.0	0	Oxford	gPlexK	1
G05112-Ja005E-PBCa	COVID_HCW_MILD	6.0	0	Oxford	gPlexK	1

101 rows × 6 columns

cell_qc_metadata = patpy.pp.calculate_cell_qc_metrics(
    adata, sample_key=sample_id_col, cell_qc_vars=["QC_ngenes", "QC_pct_mitochondrial", "QC_scrub_doublet_scores"]
)
n_cells_metadata = patpy.pp.calculate_n_cells_per_sample(adata, sample_id_col)
composition_metadata = patpy.pp.calculate_compositional_metrics(adata, sample_id_col, [cell_type_key], normalize_to=100)
metadata = pd.concat(
    [
        metadata,
        cell_qc_metadata.loc[metadata.index],
        n_cells_metadata.loc[metadata.index],
        composition_metadata.loc[metadata.index],
    ],
    axis=1,
)
metadata

	Source	Outcome	Death28	Institute	Pool_ID	binary_condition	median_QC_ngenes	median_QC_pct_mitochondrial	median_QC_scrub_doublet_scores	n_cells	...	cell_type_HSC	cell_type_MAIT	cell_type_Mast	cell_type_NK	cell_type_PB	cell_type_PLT	cell_type_RET	cell_type_cMono	cell_type_iNKT	cell_type_ncMono
scRNASeq_sample_ID
S00109-Ja001E-PBCa	COVID_SEV	2.0	0	Oxford	gPlexA	1	1112.0	0.960763	0.036112	3984	...	0.200803	1.004016	0.000000	20.682731	2.459839	0.075301	0.025100	28.664659	0.050201	1.079317
S00112-Ja003E-PBCa	COVID_MILD	5.0	0	Oxford	gPlexA	1	1068.0	1.286751	0.054808	7384	...	0.135428	0.352113	0.000000	7.624594	2.816901	0.067714	0.000000	23.171723	0.013543	2.559588
S00005-Ja005E-PBCa	COVID_CRIT	2.0	0	Oxford	gPlexA	1	1123.0	1.176937	0.066325	9002	...	0.099978	0.288825	0.000000	4.598978	1.832926	0.444346	0.000000	2.777161	0.000000	0.444346
S00061-Ja003E-PBCa	COVID_SEV	4.0	0	Oxford	gPlexA	1	1131.0	1.308555	0.044787	4278	...	0.210379	0.327256	0.000000	8.952782	1.005143	0.116877	0.000000	43.010753	0.023375	3.295933
S00056-Ja003E-PBCa	COVID_SEV	3.0	0	Oxford	gPlexA	1	950.0	1.979107	0.053691	7600	...	0.973684	0.039474	0.026316	5.263158	1.131579	0.236842	0.000000	39.960526	0.013158	2.486842
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
S00076-Ja001E-PBCa	COVID_MILD	5.0	0	Oxford	gPlexK	1	1251.0	2.055921	0.041096	5779	...	0.069216	0.017304	0.017304	8.928880	0.242256	0.155736	0.000000	32.168195	0.017304	7.527254
S00072-Ja001E-PBCa	COVID_SEV	2.0	0	Oxford	gPlexK	1	1251.0	1.500790	0.037953	5195	...	0.134745	0.538980	0.000000	12.281039	0.519731	0.076997	0.000000	19.037536	0.038499	1.828681
S00065-Ja003E-PBCa	COVID_CRIT	2.0	0	Oxford	gPlexK	1	1263.0	2.256898	0.049718	3924	...	0.050968	0.050968	0.025484	3.211009	0.433231	0.127421	0.025484	38.863405	0.025484	4.306830
S00048-Ja003E-PBCa	COVID_SEV	4.0	0	Oxford	gPlexK	1	1140.0	2.032172	0.062704	3444	...	0.290360	0.029036	0.000000	3.135889	1.596980	0.000000	0.000000	23.228804	0.058072	0.871080
G05112-Ja005E-PBCa	COVID_HCW_MILD	6.0	0	Oxford	gPlexK	1	1168.5	1.315744	0.042038	4432	...	0.000000	0.135379	0.000000	3.249097	0.473827	0.000000	0.000000	27.098375	0.000000	5.956679

101 rows × 27 columns

Quality control#

To reduce noise in the representations, we need to remove samples with too few cells:

adata = patpy.pp.filter_small_samples(adata, sample_key=sample_id_col, sample_size_threshold=250)

0 samples removed:

Run MixMIL#

MixMIL is a method, combining mixed models and multiple instance learning. It learns importance of each cell for a supervised task, aggregates cells with these learned weights, and predicts a label of interest. MixedMIL is a light-weight model and is a great baseline for supervised sample-level tasks. Here, we will show how to use it via patpy to distinguish healthy people from COVID-19 patients

Initialize MixMIL. Select the layer you would like to use and a list of tasks. Supported tasks are:

"classification"
"regression"

mixmil = patpy.tl.supervised.MixMIL(
    sample_key=sample_id_col,
    label_keys=["binary_condition"],
    tasks=["classification"],
    layer="X_pca",
    n_epochs=100
)

Train the MixMIL model:

mixmil.prepare_anndata(adata)

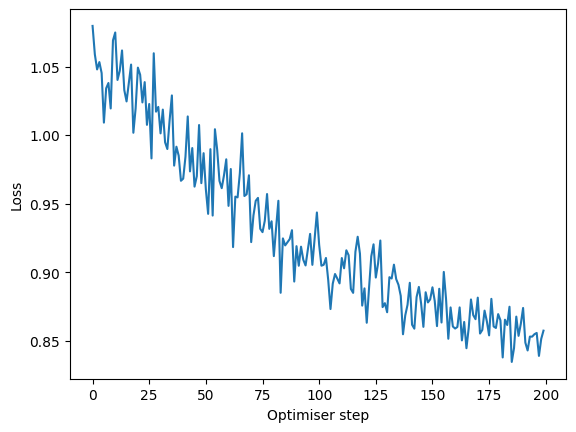

We can now display the training history:

losses = [step["loss"] for step in mixmil.training_history]
plt.plot(losses, label="MixMIL loss")
plt.xlabel("Optimiser step")
plt.ylabel("Loss")

Text(0, 0.5, 'Loss')

../_images/bf227c31e4571953ad2f1cd25b571cd9b3c19d294eac3c46de83e0c05b326ef0.png

The loss is going down, which is a desired behavior. Note that the number of steps here is bigger than the number of epochs we set. This is because training history contains information for every minibatch of the data. For this dataset and batch size, every epoch consists of 2 steps.

We can now obtain sample embeddings from the model:

mixmil_sample_reps = mixmil.get_sample_representations()
mixmil_sample_reps

	dim_0	dim_1	dim_2	dim_3	dim_4	dim_5	dim_6	dim_7	dim_8	dim_9	...	dim_40	dim_41	dim_42	dim_43	dim_44	dim_45	dim_46	dim_47	dim_48	dim_49
G05061-Ja005E-PBCa	-1.381277	1.341956	-0.457196	-1.456421	-0.330128	-1.155065	-0.913108	0.521566	0.298353	0.858071	...	0.050455	0.191479	-0.086966	-0.146908	0.049881	0.067801	0.042632	-0.081675	-0.021801	-0.128855
G05064-Ja005E-PBCa	-0.840356	-0.758498	-0.385595	-0.936781	-1.270981	-0.677239	-0.238136	-0.872834	0.775794	0.139842	...	-0.000316	0.086494	-0.003116	-0.167811	0.169646	-0.017056	0.009289	-0.028307	-0.022568	0.024029
G05073-Ja005E-PBCa	-0.538473	0.331862	-0.132182	-0.686238	-0.267157	-1.316424	0.237110	0.957211	0.683576	0.903618	...	0.118959	0.088980	-0.039237	0.130772	0.141599	0.017822	0.017913	0.070581	0.083621	-0.170728
G05077-Ja005E-PBCa	-0.527064	1.900464	0.300888	-1.442165	-0.584309	-1.436059	-0.178377	0.058934	0.615683	0.767669	...	0.176571	0.101752	-0.059887	0.181135	0.034280	-0.056092	0.019616	-0.028876	0.061174	-0.013765
G05078-Ja005E-PBCa	-0.832603	-0.414575	-0.206571	-1.346403	-0.957619	-1.585800	-0.586254	-0.052773	0.419745	0.945472	...	0.443253	0.189156	-0.111214	0.076169	0.133255	-0.042016	0.110961	-0.142148	0.008514	-0.070022
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
S00134-Ja003E-PBCa	6.941552	0.031779	-0.624828	-0.280828	0.296835	-0.387412	-0.449077	0.100738	-0.125929	0.074249	...	-0.038420	0.005695	-0.039585	0.186113	-0.074605	0.083164	-0.013090	0.004723	0.080961	0.004850
S00142-Ja005E-PBCa	3.097914	2.850465	1.051137	0.121225	0.224610	-0.820552	-0.150583	0.094237	0.402730	0.786933	...	-0.136479	0.091933	0.033427	0.008240	0.021939	0.000124	0.152159	-0.048620	-0.033645	0.021786
S00148-Ja003E-PBCa	0.750430	2.372979	0.146777	0.036760	-0.081484	-0.807887	0.507421	0.357030	0.096658	-0.360064	...	-0.073529	-0.368383	-0.052634	0.215808	-0.031842	0.076604	0.132863	0.085280	-0.031466	0.029088
U00515-Ua005E-PBUa	-1.533610	0.573506	-0.563373	0.437439	-0.800104	-0.947790	0.095739	-0.886351	0.364036	-0.315162	...	-0.231965	-0.142485	-0.208615	-0.331639	-0.022948	-0.172401	0.108861	0.008939	0.078424	0.112581
U00519-Ua005E-PBUa	-2.315831	1.010524	-0.536370	0.538096	-0.152678	-0.441404	-0.159282	-0.569883	-0.522771	0.313985	...	0.136863	0.156610	0.081693	0.005688	-0.115762	-0.022072	0.062207	0.040832	0.066958	0.014584

101 rows × 50 columns

And apply our evaluation metrics to them. Here, we test how well binary condition is predicted from the nearest neighbors in the sample representation space:

mixmil_distances = mixmil.calculate_distance_matrix()
patpy.tl.evaluate_representation(
    mixmil_distances,
    target=metadata.loc[mixmil.samples, "binary_condition"],
    task="classification"
)

{'score': np.float64(0.5933275812482024),
 'metric': 'f1_macro_calibrated',
 'n_unique': 2,
 'n_observations': 101,
 'method': 'knn'}

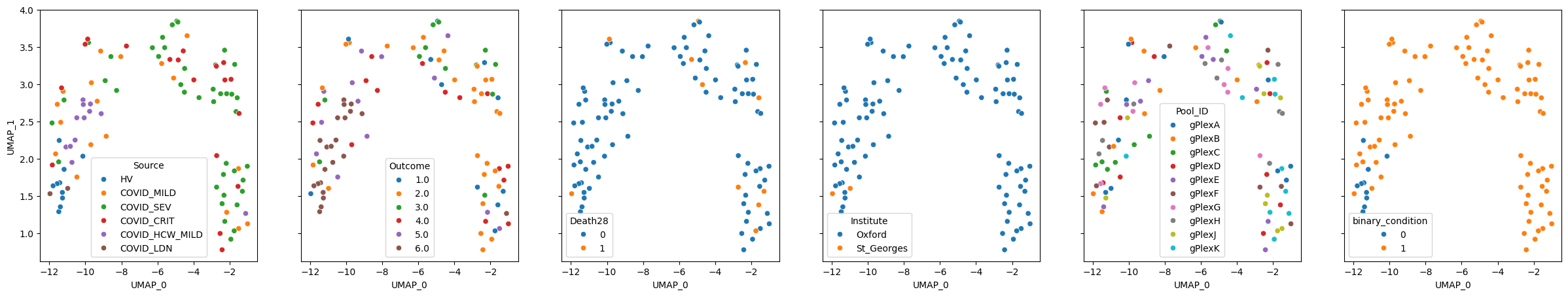

We can then visualise sample representation using dimensionality reduction methods:

mixmil.plot_embedding(method="UMAP", metadata_cols=samples_metadata_cols, continuous_palette="tab10");

../_images/fe8ba9786cf7f5c14da5adcf8741104ae34179fe772521fbcb219a60edcc285f.png

Additionally, we can predict a label directly with the model:

mixmil_prediction = mixmil.predict("binary_condition")
mixmil_prediction

	prob_0	prob_1	binary_condition_pred
G05061-Ja005E-PBCa	0.536446	0.463554	0
G05064-Ja005E-PBCa	0.524378	0.475622	0
G05073-Ja005E-PBCa	0.522635	0.477365	0
G05077-Ja005E-PBCa	0.533199	0.466801	0
G05078-Ja005E-PBCa	0.537712	0.462288	0
...	...	...	...
S00134-Ja003E-PBCa	0.489505	0.510495	1
S00142-Ja005E-PBCa	0.509378	0.490622	0
S00148-Ja003E-PBCa	0.520626	0.479374	0
U00515-Ua005E-PBUa	0.533269	0.466731	0
U00519-Ua005E-PBUa	0.551527	0.448473	0

101 rows × 3 columns

# Make sure that the order of labels is the same in metadata and prediction
y_true = metadata.loc[mixmil_prediction.index, "binary_condition"]
print(classification_report(y_true, mixmil_prediction["binary_condition_pred"]))

              precision    recall  f1-score   support

           0       0.19      1.00      0.32        10
           1       1.00      0.53      0.69        91

    accuracy                           0.57       101
   macro avg       0.59      0.76      0.50       101
weighted avg       0.92      0.57      0.65       101

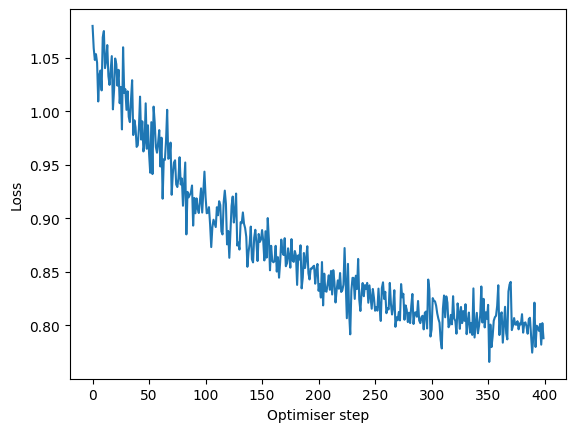

The prediction is not perfect, but the model is not fully trained as you can see on the loss plot. Let’s train it a bit further with a fine_tune method:

mixmil.fine_tune("binary_condition", tasks="classification", n_epochs=100, lr=0.001)

losses = [step["loss"] for step in mixmil.training_history]
plt.plot(losses, label="MixMIL loss")
plt.xlabel("Optimiser step")
plt.ylabel("Loss")

Text(0, 0.5, 'Loss')

../_images/3ad700f28a6d01c359ba61ce3ac3434305dd4594bc7729f88d5593377dc280b9.png

mixmil_prediction = mixmil.predict("binary_condition")

y_true = metadata.loc[mixmil_prediction.index, "binary_condition"]
print(classification_report(y_true, mixmil_prediction["binary_condition_pred"]))

              precision    recall  f1-score   support

           0       0.19      1.00      0.32        10
           1       1.00      0.53      0.69        91

    accuracy                           0.57       101
   macro avg       0.59      0.76      0.50       101
weighted avg       0.92      0.57      0.65       101

Interestingly, fine-tuning did not increase the metrics.

Additionally, the model can be fine-tuned for other tasks. For example, let’s add classification of all the disease labels:

metadata["Source"].value_counts()

Source
COVID_SEV         41
COVID_MILD        18
COVID_CRIT        18
COVID_HCW_MILD    12
HV                10
COVID_LDN          2
Name: count, dtype: int64

mixmil.fine_tune("Source", tasks="classification", n_epochs=100, lr=0.001)

losses = [step["loss"] for step in mixmil.training_history]
plt.plot(losses, label="MixMIL loss")
plt.xlabel("Optimiser step")
plt.ylabel("Loss")

Text(0, 0.5, 'Loss')

../_images/8e95cd74a045e406f45c6b8afecd2ea77d144f55a9105612fb6032254cd8478d.png

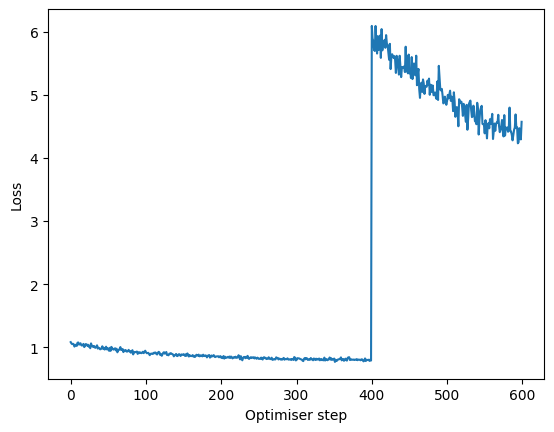

The loss initially jumped, but this is expected because the multi-label classification task is more challenging.

We can now predict the source labels:

mixmil_source_prediction = mixmil.predict("Source")
mixmil_source_prediction

	prob_COVID_CRIT	prob_COVID_HCW_MILD	prob_COVID_LDN	prob_COVID_MILD	prob_COVID_SEV	prob_HV	Source_pred
G05061-Ja005E-PBCa	0.030640	0.561769	0.074374	0.072961	0.032138	0.228119	COVID_HCW_MILD
G05064-Ja005E-PBCa	0.029576	0.642543	0.096133	0.066386	0.032763	0.132599	COVID_HCW_MILD
G05073-Ja005E-PBCa	0.029037	0.696279	0.060170	0.065821	0.030582	0.118111	COVID_HCW_MILD
G05077-Ja005E-PBCa	0.033331	0.591017	0.072786	0.068909	0.032433	0.201525	COVID_HCW_MILD
G05078-Ja005E-PBCa	0.027393	0.656529	0.072747	0.048350	0.023097	0.171884	COVID_HCW_MILD
...	...	...	...	...	...	...	...
S00134-Ja003E-PBCa	0.231576	0.125973	0.127787	0.131656	0.239131	0.143877	COVID_SEV
S00142-Ja005E-PBCa	0.102261	0.205523	0.118141	0.170917	0.131285	0.271872	HV
S00148-Ja003E-PBCa	0.089273	0.206138	0.137493	0.149648	0.101961	0.315488	HV
U00515-Ua005E-PBUa	0.094870	0.181981	0.220683	0.098946	0.057235	0.346284	HV
U00519-Ua005E-PBUa	0.113143	0.043682	0.257834	0.075100	0.059250	0.450991	HV

101 rows × 7 columns

source_true = metadata.loc[mixmil_source_prediction.index, "Source"]
print(classification_report(source_true, mixmil_source_prediction["Source_pred"]))

                precision    recall  f1-score   support

    COVID_CRIT       0.55      0.67      0.60        18
COVID_HCW_MILD       0.44      1.00      0.62        12
     COVID_LDN       0.00      0.00      0.00         2
    COVID_MILD       0.00      0.00      0.00        18
     COVID_SEV       0.83      0.46      0.59        41
            HV       0.37      1.00      0.54        10

      accuracy                           0.52       101
     macro avg       0.36      0.52      0.39       101
  weighted avg       0.52      0.52      0.47       101

The model is now trained to jointly predict binary condition and source:

mixmil.label_keys

['binary_condition', 'Source']

We can therefore predict both labels:

mixmil_binary_prediction = mixmil.predict("binary_condition")
binary_condition_true = metadata.loc[mixmil_binary_prediction.index, "binary_condition"]
print(classification_report(y_true, mixmil_binary_prediction["binary_condition_pred"]))

              precision    recall  f1-score   support

           0       0.19      1.00      0.32        10
           1       1.00      0.53      0.69        91

    accuracy                           0.57       101
   macro avg       0.59      0.76      0.50       101
weighted avg       0.92      0.57      0.65       101

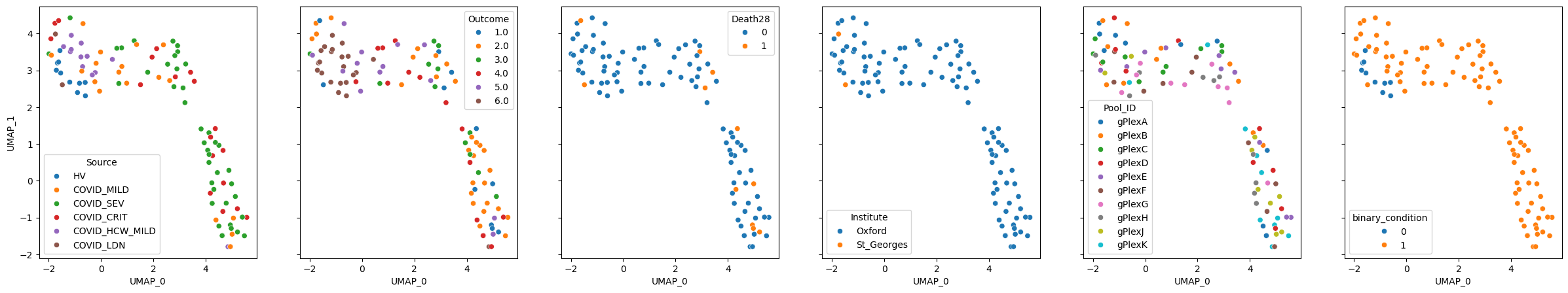

Let’s see how the model represents samples now. We must recompute distances matrix and update the UMAP, otherwise an old embedding will be used:

mixmil.calculate_distance_matrix()
mixmil.embed("UMAP")
mixmil.plot_embedding(method="UMAP", metadata_cols=samples_metadata_cols, continuous_palette="tab10");

../_images/6b6dfce17e2392c6856a23723883e966295dc2e3efe93d647117cace4fcfbecb.png

Running PULSAR#

Install helical to get UCE embeddings. You can use envs/helical.yaml conda file in the patpy source directory for an easier installation.

!pip install patpy[helical]

We need to load the data with raw counts to obtain UCE embeddings

adata = sc.read_h5ad("/home/icb/vladimir.shitov/projects/vladimir.shitov/2023_05_patient_representation_benchmark/reproducibility/pat_rep_benchmark/data/combat/combat.h5ad")
adata

AnnData object with n_obs × n_vars = 836148 × 20807
    obs: 'Annotation_cluster_id', 'Annotation_cluster_name', 'Annotation_minor_subset', 'Annotation_major_subset', 'Annotation_cell_type', 'GEX_region', 'QC_ngenes', 'QC_total_UMI', 'QC_pct_mitochondrial', 'QC_scrub_doublet_scores', 'TCR_chain_composition', 'TCR_clone_ID', 'TCR_clone_count', 'TCR_clone_proportion', 'TCR_contains_unproductive', 'TCR_doublet', 'TCR_chain_TRA', 'TCR_v_gene_TRA', 'TCR_d_gene_TRA', 'TCR_j_gene_TRA', 'TCR_c_gene_TRA', 'TCR_productive_TRA', 'TCR_cdr3_TRA', 'TCR_umis_TRA', 'TCR_chain_TRA2', 'TCR_v_gene_TRA2', 'TCR_d_gene_TRA2', 'TCR_j_gene_TRA2', 'TCR_c_gene_TRA2', 'TCR_productive_TRA2', 'TCR_cdr3_TRA2', 'TCR_umis_TRA2', 'TCR_chain_TRB', 'TCR_v_gene_TRB', 'TCR_d_gene_TRB', 'TCR_j_gene_TRB', 'TCR_c_gene_TRB', 'TCR_productive_TRB', 'TCR_chain_TRB2', 'TCR_v_gene_TRB2', 'TCR_d_gene_TRB2', 'TCR_j_gene_TRB2', 'TCR_c_gene_TRB2', 'TCR_productive_TRB2', 'TCR_cdr3_TRB2', 'TCR_umis_TRB2', 'BCR_umis_HC', 'BCR_contig_qc_HC', 'BCR_functionality_HC', 'BCR_v_call_HC', 'BCR_v_score_HC', 'BCR_j_call_HC', 'BCR_j_score_HC', 'BCR_junction_aa_HC', 'BCR_total_mut_HC', 'BCR_s_mut_HC', 'BCR_r_mut_HC', 'BCR_c_gene_HC', 'BCR_clone_per_replicate_HC', 'BCR_clone_global_HC', 'BCR_clonal_abundance_HC', 'BCR_locus_LC', 'BCR_umis_LC', 'BCR_contig_qc_LC', 'BCR_functionality_LC', 'BCR_v_call_LC', 'BCR_v_score_LC', 'BCR_j_call_LC', 'BCR_j_score_LC', 'BCR_junction_aa_LC', 'BCR_total_mut_LC', 'BCR_s_mut_LC', 'BCR_r_mut_LC', 'BCR_c_gene_LC', 'COMBAT_ID', 'scRNASeq_sample_ID', 'COMBAT_participant_timepoint_ID', 'Source', 'Age', 'Sex', 'Race', 'BMI', 'Hospitalstay', 'Death28', 'Institute', 'PreExistingHeartDisease', 'PreExistingLungDisease', 'PreExistingKidneyDisease', 'PreExistingDiabetes', 'PreExistingHypertension', 'PreExistingImmunocompromised', 'Smoking', 'Symptomatic', 'Requiredvasoactive', 'Respiratorysupport', 'SARSCoV2PCR', 'Outcome', 'TimeSinceOnset', 'Ethnicity', 'Tissue', 'DiseaseClassification', 'Pool_ID', 'Channel_ID'
    var: 'gene_ids', 'feature_types'
    uns: 'Institute', 'ObjectCreateDate', 'Source_colors', 'Technology', 'genome_annotation_version'
    obsm: 'X_umap', 'X_umap_source'
    layers: 'raw'

adata.layers["raw"][:30, :30].A

array([[0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 2., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 1.],
       [0., 0., 0., 0., 1., 0., 0., 0., 0., 2., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 1., 1., 0., 0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 1., 0., 0., 0., 0., 8., 1., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        1., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 1., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 2., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0.,
        1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1.],
       [0., 0., 0., 0., 1., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0.,
        1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        1., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 2., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 2., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 1., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 1., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        1., 0., 0., 2., 0., 0., 0., 1., 0., 1., 0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1.],
       [0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        1., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 2., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 1., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        1., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 4., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 2., 3.,
        0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 1., 1.]],
      dtype=float32)

adata.X = adata.layers["raw"]

Let’s subsample our data object to 1024 cells per sample that PULSAR uses. This will also drastically reduce time to get UCE embeddings

adata = patpy.pp.subsample(adata, obs_category_col=sample_id_col, n_obs=1024, min_samples_per_category=250)
adata

View of AnnData object with n_obs × n_vars = 103460 × 20807
    obs: 'Annotation_cluster_id', 'Annotation_cluster_name', 'Annotation_minor_subset', 'cell_type', 'Annotation_cell_type', 'GEX_region', 'QC_ngenes', 'QC_total_UMI', 'QC_pct_mitochondrial', 'QC_scrub_doublet_scores', 'TCR_chain_composition', 'TCR_clone_ID', 'TCR_clone_count', 'TCR_clone_proportion', 'TCR_contains_unproductive', 'TCR_doublet', 'TCR_chain_TRA', 'TCR_v_gene_TRA', 'TCR_d_gene_TRA', 'TCR_j_gene_TRA', 'TCR_c_gene_TRA', 'TCR_productive_TRA', 'TCR_cdr3_TRA', 'TCR_umis_TRA', 'TCR_chain_TRA2', 'TCR_v_gene_TRA2', 'TCR_d_gene_TRA2', 'TCR_j_gene_TRA2', 'TCR_c_gene_TRA2', 'TCR_productive_TRA2', 'TCR_cdr3_TRA2', 'TCR_umis_TRA2', 'TCR_chain_TRB', 'TCR_v_gene_TRB', 'TCR_d_gene_TRB', 'TCR_j_gene_TRB', 'TCR_c_gene_TRB', 'TCR_productive_TRB', 'TCR_chain_TRB2', 'TCR_v_gene_TRB2', 'TCR_d_gene_TRB2', 'TCR_j_gene_TRB2', 'TCR_c_gene_TRB2', 'TCR_productive_TRB2', 'TCR_cdr3_TRB2', 'TCR_umis_TRB2', 'BCR_umis_HC', 'BCR_contig_qc_HC', 'BCR_functionality_HC', 'BCR_v_call_HC', 'BCR_v_score_HC', 'BCR_j_call_HC', 'BCR_j_score_HC', 'BCR_junction_aa_HC', 'BCR_total_mut_HC', 'BCR_s_mut_HC', 'BCR_r_mut_HC', 'BCR_c_gene_HC', 'BCR_clone_per_replicate_HC', 'BCR_clone_global_HC', 'BCR_clonal_abundance_HC', 'BCR_locus_LC', 'BCR_umis_LC', 'BCR_contig_qc_LC', 'BCR_functionality_LC', 'BCR_v_call_LC', 'BCR_v_score_LC', 'BCR_j_call_LC', 'BCR_j_score_LC', 'BCR_junction_aa_LC', 'BCR_total_mut_LC', 'BCR_s_mut_LC', 'BCR_r_mut_LC', 'BCR_c_gene_LC', 'COMBAT_ID', 'scRNASeq_sample_ID', 'COMBAT_participant_timepoint_ID', 'Source', 'Age', 'Sex', 'Race', 'BMI', 'Hospitalstay', 'Death28', 'Institute', 'PreExistingHeartDisease', 'PreExistingLungDisease', 'PreExistingKidneyDisease', 'PreExistingDiabetes', 'PreExistingHypertension', 'PreExistingImmunocompromised', 'Smoking', 'Symptomatic', 'Requiredvasoactive', 'Respiratorysupport', 'SARSCoV2PCR', 'Outcome', 'TimeSinceOnset', 'Ethnicity', 'Tissue', 'DiseaseClassification', 'Pool_ID', 'Channel_ID', 'binary_condition'
    var: 'gene_ids', 'feature_types'
    uns: 'Institute', 'ObjectCreateDate', 'Source_colors', 'Technology', 'genome_annotation_version'
    obsm: 'X_umap', 'X_umap_source'
    layers: 'raw'

adata = patpy.pp.basic.get_helical_embedding(adata, model="uce", device="cuda")

adata.obsm["X_uce"].shape

(103460, 1280)

Now goes a bit annoying part… At teh time of writing this tutorial, helical requires python version <3.13. And to run PULSAR, we need python >= 3.13. So we need to save the object with UCE embeddings now, change the environment to the one containin python 3.13 and run PULSAR from there.

adata.write_h5ad("data/combat_subsample_with_uce.h5ad")

Load the data after switching the environment

adata = sc.read_h5ad("data/combat_subsample_with_uce.h5ad")
adata.obsm["X_uce"].shape

(103460, 1280)

You can now run PULSAR via patpy. Before doing that, make sure to install it by running pip install git+https://github.com/snap-stanford/PULSAR or simply:

!pip install patpy[pulsar]

pulsar = patpy.tl.supervised.PULSAR(
    sample_key=sample_id_col,
    label_keys=["binary_condition"],
    tasks=["classification"]
)

pulsar.prepare_anndata(adata)

Resample 0 time

pulsar_distances = pulsar.calculate_distance_matrix()

pulsar.plot_embedding(method="UMAP", metadata_cols=samples_metadata_cols, continuous_palette="tab10");

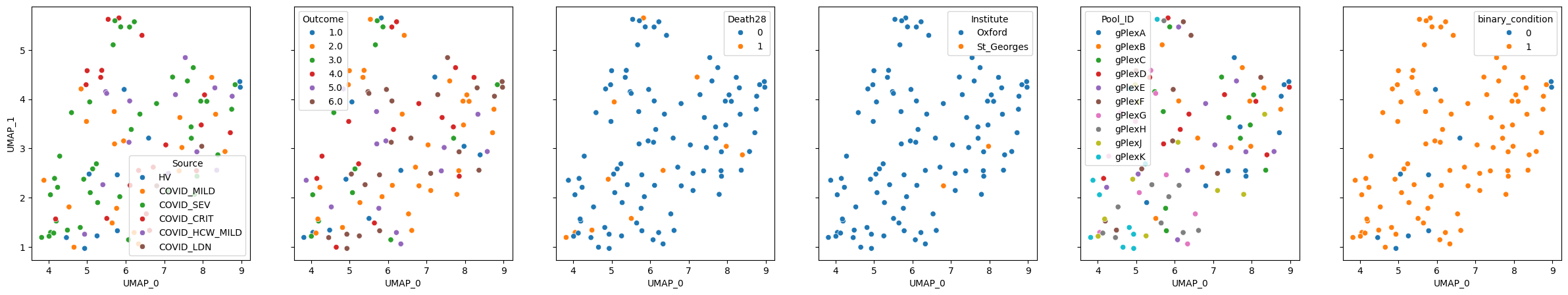

../_images/4e1cfe274f8389052673281540f19ae9d0f11bbd61e59147e124fd60bb184c49.png

As we can see, the model doesn’t preserve information particularly well, despite being trained on this dataset and having 87 million parameters (on top of underlying 650M for UCE and 15B for ESM2)

Let’s give PULSAR another change and load the model fine-tuned for disease prediction

pulsar_aligned = patpy.tl.supervised.PULSAR(
    sample_key=sample_id_col,
    label_keys=["binary_condition"],
    tasks=["classification"],
    pretrained_model="KuanP/PULSAR-aligned"
)

pulsar_aligned.prepare_anndata(adata)

Resample 0 time

pulsar_aligned_distances = pulsar_aligned.calculate_distance_matrix()

pulsar_aligned.plot_embedding(method="UMAP", metadata_cols=samples_metadata_cols, continuous_palette="tab10");

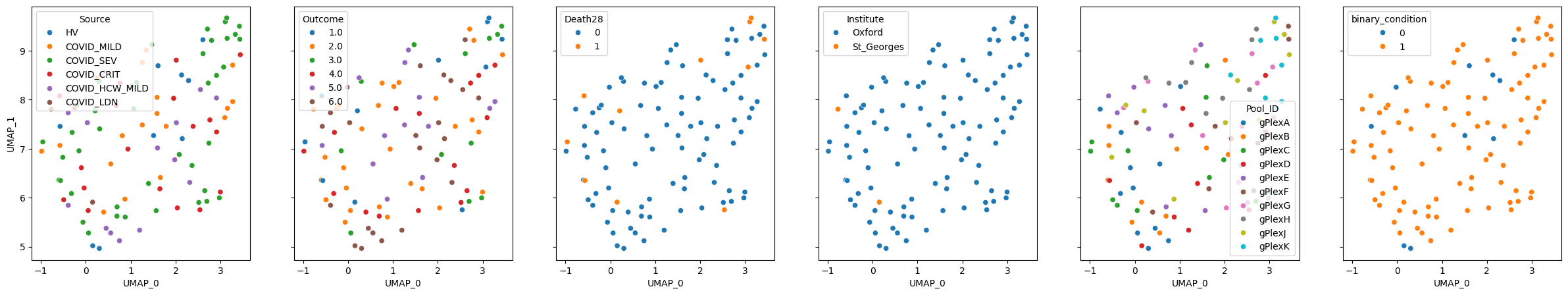

../_images/9ad429f8776af937fcf5b4d6fb99086efcab4cafce3844e6137e16048a46a883.png

We can run apply fine_tune to PULSAR as well. In this case, the base model won’t be retrained, but instead a small linear classifier will be trained on top of it. We can add as many prediction tasks as we want, they will be trained independently from each other.

pulsar.fine_tune(
    labels=["binary_condition", "Source"],
    tasks=["classification", "classification"]
)

pulsar_source_prediction = pulsar.predict("Source")
pulsar_source_prediction

	prob_COVID_CRIT	prob_COVID_HCW_MILD	prob_COVID_LDN	prob_COVID_MILD	prob_COVID_SEV	prob_HV	Source_pred
S00109-Ja001E-PBCa	0.179383	0.138693	0.154339	0.159889	0.199176	0.168521	COVID_SEV
S00112-Ja003E-PBCa	0.145783	0.164913	0.168011	0.202601	0.146124	0.172568	COVID_MILD
G05153-Ja005E-PBCa	0.145258	0.215347	0.194767	0.139690	0.137902	0.167036	COVID_HCW_MILD
S00005-Ja005E-PBCa	0.162052	0.169440	0.203298	0.152381	0.157898	0.154931	COVID_LDN
S00061-Ja003E-PBCa	0.165861	0.158230	0.187931	0.165523	0.166231	0.156225	COVID_LDN
...	...	...	...	...	...	...	...
S00076-Ja001E-PBCa	0.176172	0.156331	0.098420	0.195909	0.191835	0.181333	COVID_MILD
S00072-Ja001E-PBCa	0.158602	0.142858	0.112953	0.209858	0.191977	0.183752	COVID_MILD
S00065-Ja003E-PBCa	0.220320	0.151980	0.084051	0.149645	0.229148	0.164855	COVID_SEV
S00048-Ja003E-PBCa	0.182517	0.150886	0.136704	0.166958	0.192568	0.170367	COVID_SEV
G05112-Ja005E-PBCa	0.170985	0.140206	0.137678	0.193857	0.184543	0.172731	COVID_MILD

103 rows × 7 columns

source_true = metadata["Source"]
print(classification_report(source_true, pulsar_source_prediction.loc[metadata.index, "Source_pred"]))

                precision    recall  f1-score   support

    COVID_CRIT       0.64      0.50      0.56        18
COVID_HCW_MILD       0.50      0.58      0.54        12
     COVID_LDN       0.15      1.00      0.27         2
    COVID_MILD       0.46      0.61      0.52        18
     COVID_SEV       0.79      0.54      0.64        41
            HV       0.75      0.60      0.67        10

      accuracy                           0.56       101
     macro avg       0.55      0.64      0.53       101
  weighted avg       0.65      0.56      0.59       101

pulsar_binary_prediction = mixmil.predict("binary_condition")
binary_condition_true = metadata["binary_condition"]
print(classification_report(y_true, pulsar_binary_prediction.loc[metadata.index, "binary_condition_pred"]))

              precision    recall  f1-score   support

           0       0.11      0.60      0.19        10
           1       0.92      0.48      0.63        91

    accuracy                           0.50       101
   macro avg       0.51      0.54      0.41       101
weighted avg       0.84      0.50      0.59       101

In this tutorial you learned how to run supervised sample-level methods, evaluate and visualise the results with patpy
